Spiral Heat Exchangers

A spiral heat exchanger is a type of shell and tube heat exchanger design that consists of a spiral body made from two flat surfaces, typically metal strips, which are coiled to form two spiral channels. Commonly used for applications including digester heating, pasteurization, heat recovery, pre-heating and effluent cooling, spiral heat exchangers offer the benefit of increased floor space due to their relatively compact size. A spiral heat exchanger may be in a helically configured pattern, or it may be two coiled flat panels creating a counter-flow. Read More…

Spiral Heat Exchangers A spiral heat exchanger is a type of shell and tube heat exchanger design that consists of a spiral body made from two flat surfaces, typically metal strips, which are coiled to form two spiral channels.

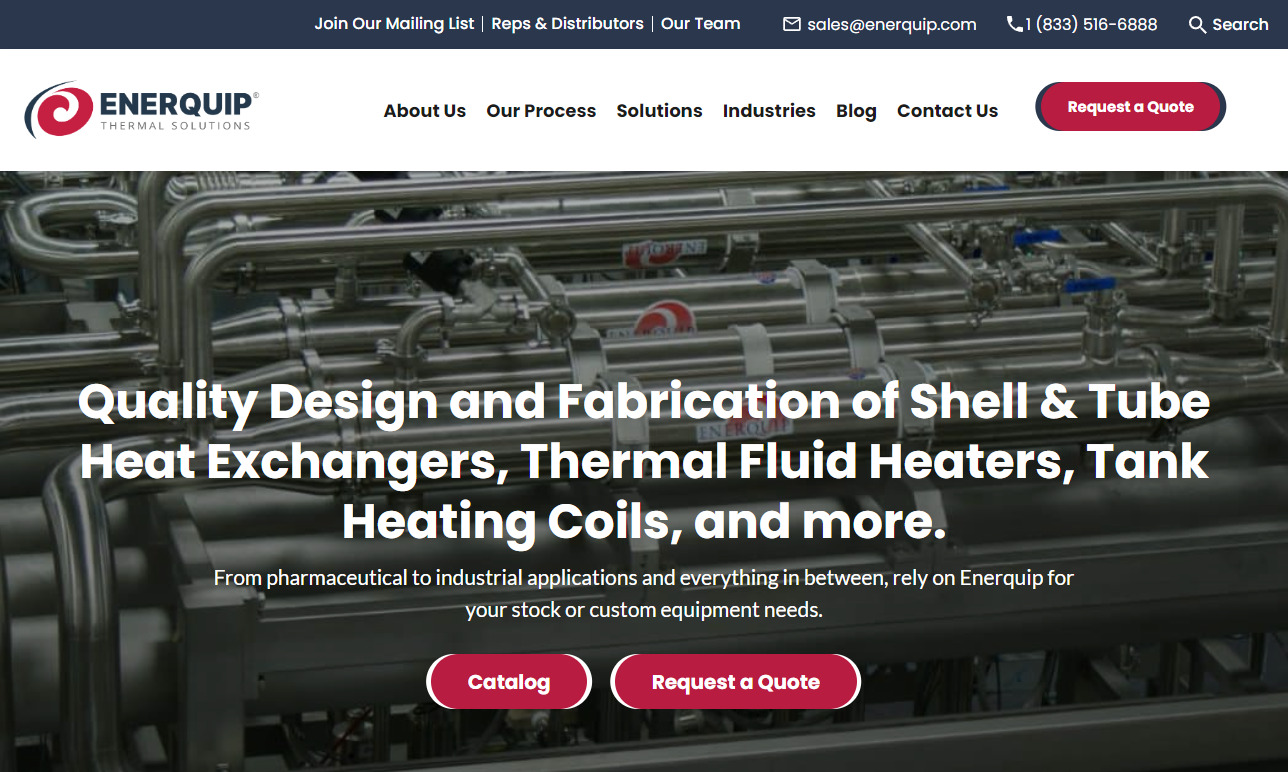

Enerquip is your trusted shell and tube heat exchanger partner. Our in-house, thermal design engineers and ASME welders and fabricators can design and build custom engineered solutions for your company’s specific needs. Our experience and expertise have earned us a preferred supplier status with leading companies in the pharmaceutical, food and beverage, cannabis, personal care, chemical,...

Enerquip Thermal Solutions $$$

Mason Manufacturing is a custom fabricator of shell and tube heat exchangers, ASME pressure vessels, columns, and tanks. Located in Decatur, Illinois, Mason has over 60 years of experience providing customers with custom fabricated vessels that conform to customer specifications, applicable codes, accepted industry standards and that are consistently shipped on time with competitive pricing. ...

Mason Manufacturing LLC $$$

For 50 years, Noren Products has delivered innovative thermal management solutions that prevent electronic components from overheating. All of our products are designed and assembled in the USA. Our expert team, including engineering and production, are headquartered in Taylor, Texas.

Noren Thermal Solutions $$$

Since 1953, we have been an industrial heat exchanger and heat transfer systems manufacturer offering shell and tube, marine, plate and frame, brazed plate, welded plate and air cooled heat exchangers and more. To us, service means responsive, knowledgeable support.

API Heat Transfer Inc. $$$

Cataract Steel Industries is a renowned leader in the design, manufacturing, and distribution of high-quality heat exchangers and related thermal solutions. Our company has earned a sterling reputation for engineering excellence, innovation, and a steadfast commitment to customer satisfaction. Our core focus revolves around providing a wide array of heat exchangers, including shell and tube,...

Cataract Steel Industries $$$

Southern Heat Exchanger Corp prides itself on meeting specifications and exceeding expectations in heat transfer equipment. Offering a full range of products and services to satisfy your shell & tube heat exchanger needs, we provide years of experience and a range of materials and capabilities to best serve you. We stand for superior quality in heat exchangers and cooling coils.

Southern Heat Exchanger Corp. $$$
Get Your Company Listed
placeholder image Enerquip Thermal Solutions Mason Manufacturing LLC Noren Thermal Solutions API Heat Transfer Inc. Cataract Steel Industries Southern Heat Exchanger Corp.

Typically used in the heating of liquids that contain solids, spiral heat exchangers tend to get dirty more quickly than other types of tube heat exchangers. However, spiral heat exchangers offer a single-flow path and rotary current that creates a self cleaning effect. The self cleaning effect initiates a low pressure drop and allows the spiral heat exchanger to easily dislodge blockages.

This allows spiral heat exchangers to keep clean fairly easily, despite the particle-laden materials they heat, for example sludge or slurries. Spiral plate heat exchangers serve engineering and process industries as well as ethanol, alcohol, food processing, pharmaceutical, oil and gas, chemical, wastewater treatment and mining.

Inside of the tubular outer casing of the spiral heat exchanger, there are two long metal strips with welded-on spacer studs. The strips are rolled or coiled around a central core in order to form a spiral body that contains two evenly spaced single-passage channels. It is similar to the placing of plates in plate heat exchangers to increase the surface area.

Spiral Heat Exchangers Spiral Heat Exchangers - Heat-Exchanger USA

Next, the alternate sides of each of the channels are welded and two flat or conical gasket covers are bolted over the sides of the spiral body to complete the construction. The covers ensure that the fluids in the spiral heat exchanger will not mix. There are three main ways in which fluids will flow in a spiral heat exchanger. Countercurrent flow is when both fluids flow in opposing directions.

Spiral heat exchangers with this type of flow are typically mounted vertically to condense vapor and mounted horizontally to handle high levels of solid particles. Spiral flow/cross flow is when one fluid is in spiral flow and the other fluid is in cross flow. This type of flow requires spiral heat exchangers to have spiral flow passages welded on each side.

Distributed vapor/spiral flow is typically mounted vertically for the sub-cooling of condensate and non-condensable fluids. In this type of flow, the coolant moves in a spiral and discharges out of the top, while hot gases are discharged as a condensate out of the bottom.
